Summary. Chargaff's first parity rule (%A=%T and %G=%C) is explained by the Watson-Crick model for duplex DNA in which complementary base pairs form individual accounting units. Chargaff's second parity rule is that the first rule also applies to single strands of DNA.

    The limits of accounting units in single strands were examined by moving windows of various sizes along sequences and counting the relative proportions of A and T (the W bases), and of C and G (the S bases). Shuffled sequences account, on average, over shorter regions than the corresponding natural sequence. For an E. coli segment, S base accounting is, on average, contained within a region of 10 kb, whereas W base accounting requires regions in excess of 100 kb. Accounting requires the entire genome (190 kb) in the case of vaccinia virus, which has an overall "Chargaff difference" of only 0.086% (i.e. only one in 1162 bases does not have a potential pairing partner in the same strand). Among the chromosomes of Saccharomyces cerevisiae, the total Chargaff differences for the W bases and for the S bases are usually correlated.

    In general, Chargaff differences for a natural sequence and its shuffled counterpart diverge maximally when 1 kb sequence windows are employed. This should be the optimum window size for examining correlations between Chargaff differences and sequence features which have arisen through natural selection.

    We propose that Chargaff's second parity rule reflects the evolution of genome-wide stem-loop potential as part of short and long range accounting processes which work together to sustain the integrity of various levels of information in DNA.

When the base composition of natural duplex DNA is determined it is found that the quantities of A and T are equal and the quantities of C and G are equal. This is Chargaff's famous first parity rule (Chargaff, 1951). If a long DNA duplex is cut into two and the base composition of each part determined, the rule is found to hold precisely for the two parts, as for the duplex of origin. This division of the duplex can be continued down to individual bases (pairing with their complementary bases on the opposite strand of the duplex). Again Chargaff's parity rule is obeyed precisely (Watson & Crick, 1953). Disregarding nearest- neighbour influences (Turner, 1996), single base pairs can be regarded as fundamental "accounting units". The summation of these individual accounting units results in the precise A=T and C=G equivalences of duplex DNA sequences. That the equivalences have arisen, and are maintained, because they are of adaptive value to an organism, is not in doubt (Bernstein & Bernstein, 1991).

   Chargaff's second parity rule is that, to a close approximation, the first rule equivalences also apply to individual single-strands taken from natural duplex DNA molecules. The possible existence of a second rule became evident in the 1960s (Karkas et al., 1968; Chargaff, 1979). Three decades later recognition is increasing (Prabhu, 1993; Forsdyke, 1995c), but stochastic, rather than adaptive, explanations are emphasized (Lobry, 1995; Sueoka, 1995). This may be mistaken. The equal proportions of males and females in most large populations may appear as merely the result of the chance flipping of the sexual coin. However, the ratio is fixed by powerful selective forces which militate against disparities (Darwin, 1871; Fisher, 1958). Equal proportions can be an evolutionarily stable strategy (Smith, 1989).

    The second rule is particularly apparent when long sequences are examined. For example, the base composition of the "top" strand of chromosome III of Saccharomyces cerevisiae (Oliver et al., 1992), is 98212 (A), 95572 (T), 62125 (C), and 59432 (G). A and T differ by only 2640 bases, and C and G differ by only 2693 bases. Only 1.4% of the W bases (A and T, which pair weakly) are not accounted for by a potential pairing partner. Only 2.2% of the S bases (C and G, which pair strongly) are not accounted for by a potential pairing partner. It appears that there has been some sort of accounting so that the overall "Chargaff difference" for the chromosome is only 1.7%. Is this a function of the whole chromosome (i.e., is the whole chromosome one single accounting unit), or are there smaller accounting units which, when summed, generate this value?

   The accounting is between A and T, and between C and G, not between A and C (the M [amino] bases), or between T and G (the K [keto] bases). Thus, an accounting process by which Chargaff differences in single strands of DNA are kept small might involve Watson-Crick base-pairing as in the case of duplex DNA. It is known that supercoiled duplex DNA can extrude stem-loops (Murchie et al., 1992), and that there has been an evolutionary pressure on base order favouring the development of extensive stem-loop potential in genomes (Forsdyke, 1995a-d; 1996a,b; 1998). This may derive from the role of "kissing" interactions between complementary loops in the homology search preceding meiotic recombination (Crick, 1971; Kleckner & Weiner 1993; Rocco & Nicolas, 1996). Since efficient recombination would be evolutionarily advantageous (Bernstein & Bernstein, 1991), mutations which improve the ability of DNA to act as a recombination substrate (i.e., mutations favouring the evolution of genome-wide stem-loop potential), would have been accepted. By virtue of the stems in stem-loop structures, there would then be a tendency for there to be equal proportions of A and T, and of C and G, in single strands of DNA.

    Thus, base pairing in stems provides one possible level of accounting, which would be localized to the region of stem-loop extrusion. It seems unlikely that this relatively short range process could alone explain the precision of single-strand accounting. Base pairing between complementary loops (Tomizawa, 1984; Eguchi et al., 1991), which might occur very efficiently between cis-oriented sequences within one chromosome (Jinks-Robertson et al., 1993), and might operate over long genomic distances (Engels et al., 1994; Henikoff, 1997), might provide another level of accounting. Chargaff's second rule might apply to long genomic segments because of the summation of underlying primary accounting processes involving both stems (short-range accounting) and loops (long-range accounting).

    These processes might operate over distinct domains ("accounting subdomains") of the segments. If one counted bases in a sequence window which happened to correspond to a subdomain, then Chargaff differences should approach a minimum. If one then moved the window so that it was centered at the intersection of two subdomains, the Chargaff differences should approach a maximum. Thus, one should be able to determine the limits of accounting subdomains by moving a window along sequences and counting the bases in each window.

   Smithies et al., (1981) have provided evidence for accounting domains as so defined. These studies were recently extended by Lobry (1995; 1996a, b). However, the choice of window size was arbitrary. We here present studies in which window sizes have been varied. We are concerned with the precision of Chargaff's second rule, contributed to both by adaptive and by stochastic factors, and the length of DNA needed to achieve that precision.

    In the following paper we report that the determined optimum window size actually is optimum for demonstrating such correlations; indeed, deviations from Chargaff's second rule correlate with transcription direction (Bell & Forsdyke, 1998).

Among the first long sequences obtained as part of the E. coli genome project were two contiguous sequences spanning the 0-4.1 min region of the single E. coli chromosome. These were GenBank sequences ECO110K (0-2.4 min;Yura et al., 1992), and ECO82K (2.4-4.1 min; Fujita et al., 1994), which were combined to generate a segment which we refer to as ECO193K. Chargaff differences, calculated as described previously (Forsdyke, 1998), were determined for windows both in the natural sequence, and in a reference sequence with the same base composition generated by randomizing base order in the natural sequence using the GCG program SHUFFLE (Gribskov & Devereux, 1991).

   In shuffled sequences the balance between the quantities of two pairing bases would be expected to resemble that resulting from the tossing of a biased coin for which heads (A or C) would be slightly favoured/disfavoured over tails (T or G), respectively, depending on their relative proportions in the total segment. The base composition of the arbitrarily designated "top" strand of ECO193K is 45,886 (A), 46,938 (T), 48,343 (C), and 52,476 (G). A is slightly disfavoured over T (by 1052 bases), and C is disfavoured over G (by 4133 bases). Only 1.13 % of the W bases, and 4.10 % of the S bases, are not accounted for by a potential pairing partner. Differences should approach these limiting values after many tosses.

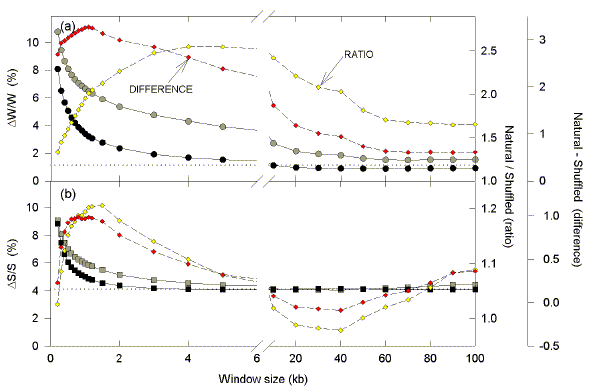

    This is shown in Fig. 1 where average absolute Chargaff differences are plotted against the size of sequence windows. With windows of only 200 nt, high differences would be expected since there would be great statistical fluctuations when base "coins" are "tossed" no more than 200 times. Average absolute differences for both the W bases and the S bases are high when windows are 200 nt. Values for the natural sequence exceed those of the shuffled natural sequence, implying evolutionary pressures on base order favouring the generation and maintenance of Chargaff differences.

    With increasing window size average Chargaff differences for both natural and shuffled sequences decrease in an exponential fashion to approach the value for the entire segment (horizontal dotted lines). Much of the decline in Chargaff difference values is achieved with windows in the 1 to 2 kb range, implying effective local accounting, largely due to statistical factors. Windows of about 3 kb are required for average S base Chargaff differences for the shuffled sequence to approach the theoretical limit. However, windows of about 20 kb are required for average S base Chargaff differences for the natural sequence to approach the limit (Fig. 1b). For the W bases, the natural sequence does not reach the limit even with windows extending to 100 kb. The corresponding shuffled sequence reaches the limit with average windows of about 10 kb (Fig. 1a). These results imply that S and W bases are, to some extent, accounted separately, and that while S base accounting is, on average, contained within a region of 10 kb, W base accounting, on average, requires regions in excess of 100 kb.

    Values for the natural and shuffled sequences were compared either as a ratio (open yellow diamonds), or by subtraction (filled red diamonds). The size of the window at which Chargaff differences for natural and shuffled sequences diverge maximally depends on the method used. In the case of the W bases the maximum divergence by ratio occurs with 4 kb windows, but the maximum divergence by subtraction is with 1.1 kb windows. In the case of the S bases the divergence by the ratio method is high with 1 kb windows, but reaches a maximum with 1.5 kb windows. By the difference method, the divergence reaches a maximum level at 0.6 kb which is sustained to 1.2 kb.

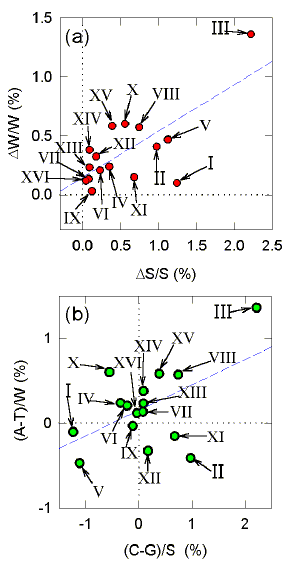

FIG. 5. [Above] Relationship between Chargaff differences for the W bases, and for the S bases, for the 16 individual chromosomes of Saccharomyces cerevisiae. (a) Absolute Chargaff differences. The least-squares regression line (dashed) has a correlation coefficient (r) of 0.72, and a slope of 0.39, which is significantly different from zero (P=0.002). (b) Signed Chargaff differences (using an alphabetical order convention; A-T, C-G). The least-squares regression line has a correlation coefficient (r) of 0.53, and a slope of 0.30, which is significantly different from zero (P=0.034).

Chargaff's first parity rule for duplex DNA remains valid because evolutionary forces so dictate. Should the base T in the complementary strand opposite an A residue mutate to a C, then the rule is sustained either because the mispairing is corrected before the duplex can divide, or because the C pairs with a G after the division. For a short period of time the rule is violated, but correction is rapid. The pressures for the evolution of this highly efficient "accounting" (error-correcting) process are well understood in terms of DNA structure and function (Watson & Crick, 1953). Organisms which "forget" Chargaff's first rule, are heavily penalized in the course of evolution (Bernstein & Bernstein, 1991).

   Much less well understood are the evolutionary pressures on organisms not to "forget" Chargaff's second parity rule. Since the base symmetries are the same as in the first rule, it is appropriate to consider the second rule in similar terms as a possible manifestation of processes which have evolved to sustain the integrity of various levels of information in DNA (Forsdyke 1981; 1996b). Application of classical information theory to DNA sequences has indicated the major roles of base composition-dependent and base order-dependent information components, the latter operating primarily at the dinucleotide level (Gatlin, 1972; Sibbald et al., 1989). Most information-theoretic approaches treat DNA sequences as linear strings, without considering the possible information component arising from long range interactions (Sibbald et al., 1989). A need to consider such interactions is apparent in models postulating error-correcting information in DNA (Forsdyke, 1981; Liebovitch et al., 1996)

    As set out in the Introduction, we do not dismiss single-strand accounting as merely a stochastic phenomenon, but seek an explanation in terms of recent advances in our understanding of the chemistry and biology of stem-loop potential in DNA (Murchie et al., 1992; Forsdyke 1995a-d; 1996 a, b; 1998). The accounting is apparent, not only at the level of single bases as considered here, but also at the levels of the 16 dinucleotides, and of the 64 trinucleotides, and even at higher oligonucleotide levels (Prabhu, 1993). Dinucleotide frequencies appear more fundamental than frequencies of higher oligonucleotides (Nussinov, 1981), consistent with dinucleotide nearest-neighbour stacking interactions being of critical importance for secondary structure (Turner, 1996). In all species examined the frequencies of particular dinucleotides (e.g., AC) closely approximate those of their complements (e.g., GT). This applies both to a natural sequence, and its shuffled counterpart, implying a minimal role of base order (Forsdyke, 1995c). Shuffled natural sequences retain equal proportions of complementary oligonucleotides, but an artificial sequence might be constructed with a low T content, so that AC>GT. Thus, evolutionary forces have acted on base composition to sustain Chargaff's second rule.

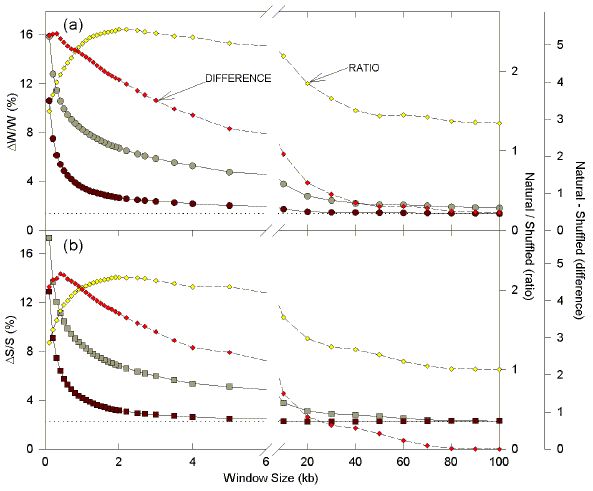

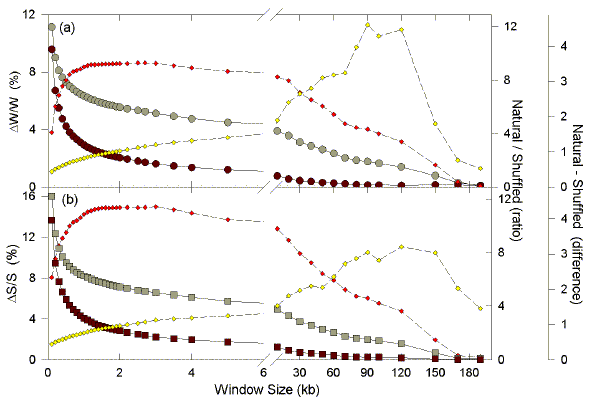

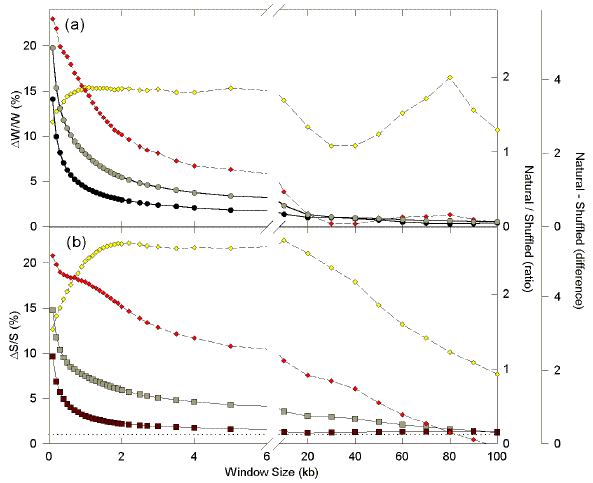

    Absolute Chargaff difference values decrease with increasing window size, especially in the case of shuffled versions (Figs. 1-4). The corresponding natural sequences sustain Chargaff differences at high window sizes, indicating selective evolutionary pressure on base order in this respect. Nevertheless, small Chargaff difference values are achieved at high window sizes. This may not just be a relaxation of selective pressure to allow the operation of stochastic factors. Long range accounting may itself be the result of selective pressures. In the following paper we suggest that stems alone are not sufficient to explain the observed accounting (Bell and Forsdyke, 1999). There should be accounting not only between bases in stems, but also between bases in complementary loops. The latter might be widely separated. Thus, we determined here the range over which single-strand accounting might operate, long range interactions being presumed to depend largely on loop-loop interactions.

    With minimal assumptions about underlying mechanism, we have shown that the accounting range may extend to many kilobases, and may vary depending on the particular Watson-Crick base-pair studied, and on the organism (Figs. 1-4). At the "macroscopic" scale of the present work, some correlation between W base and S base accounting is evident (Fig. 5).

   A prima facie case for the existence of long range intra- and inter-chromosomal sensing (and, where necessary, correction), of sequence information is made here in numerical terms. The case can also be made from numerous reports of long range homology recognition phenomena whose adaptive value appears related to error-correction at the level of genes or gene products (Engels et al., 1994; McKee, 1996; Henikoff, 1997). These include enumeration of repeats with subsequent inactivation by mutation (Singer & Selker, 1995), or by methylation (Shemer et al., 1996;), and interphase, mitotic and meiotic recombination (Bernstein & Bernstein, 1991; Jinks-Robertson et al., 1993). The following paper explores the relationship between short and long-range accounting processes at the level of individual genes (Bell & Forsdyke, 1999).

    The following five quotations are taken from a paper entitled "Compositional Symmetries in Complete Genomes" by Dong Qi and A. Jamie Cuticchia of the Bioinformatics Supercomputing Centre, The Hospital for Sick Children, Toronto. The paper was published in 2001 in Bioinformatics 17, 557-559. Using the "SEARCH" facility on the HomePage of this site, or the "FIND" facility of your web browser, you can determine that the same sentences appear in the above paper (Bell and Forsdyke, 1999a).

The possibility of this having occurred by chance being virtually impossible, this fits the formal definition of plagiarism. The copyright agreement Dr. Cuticchia would have had to sign for the paper to be published by Oxford University Press reads:

However, plagiarism may not be deliberate. Some senior scientists who have busy schedules rely on their associates to write papers. The latter, whose first language may not be English, may at one point in time take direct quotations to their notes. At a later point in time when asked to put together a paper, they may forget that the notes were in the form of direct quotations. If the senior colleague then puts his own name on the paper he accepts full responsibility for what has been written but, with respect to the direct quotations, he is guilty only of professional negligence, not of deliberate plagiarism.

     The use of the direct quotations would seem to establish that the original paper (Bell and Forsdyke, 1999a), although not cited, must have been read very carefully. The author could not have been unaware of Prabhu's 1993 paper entitled "Symmetry observations in long nucleotide sequences."

     The title of Qi and Cuticchias' 2001 paper was "Compositional symmetries in complete genomes." It is regrettable that there was no citation of Prabhu's 1993 paper, since, as pointed out by Forsdyke (2002) in a "commentary" on the Qi-Cuticchia paper (Bioinformatics 18, 215-217), there was a great deal of overlap between the two papers (Click Here).

    There was, however, citation of other works (e.g. Bell and Forsdyke, 1999b). In that the two papers of Bell and Forsdyke were published together in the same journal issue, the author of the Qi-Cuticchia paper might have presumed that a reader of one (1999b) would have seen the other (1999a), and so could become aware of Prabhu's 1993 paper. Authors are often under pressure from publishers to decrease the number of references, and this is one way of complying. However, the opening paragraph of the Qi-Cuticchia paper boldly declares:

Perhaps the author(s) of a paper claiming to "reveal a universal parity rule," should have exercised more care. Unfortunately, at the time the paper appeared Dr. Cuticchia was much engaged in one of the many scandals which plague The Hospital for Sick Children (see Nature 2001, 414, 384, and Toronto Globe and Mail, 12th and 15th Nov. 2001; (Click Here)).
